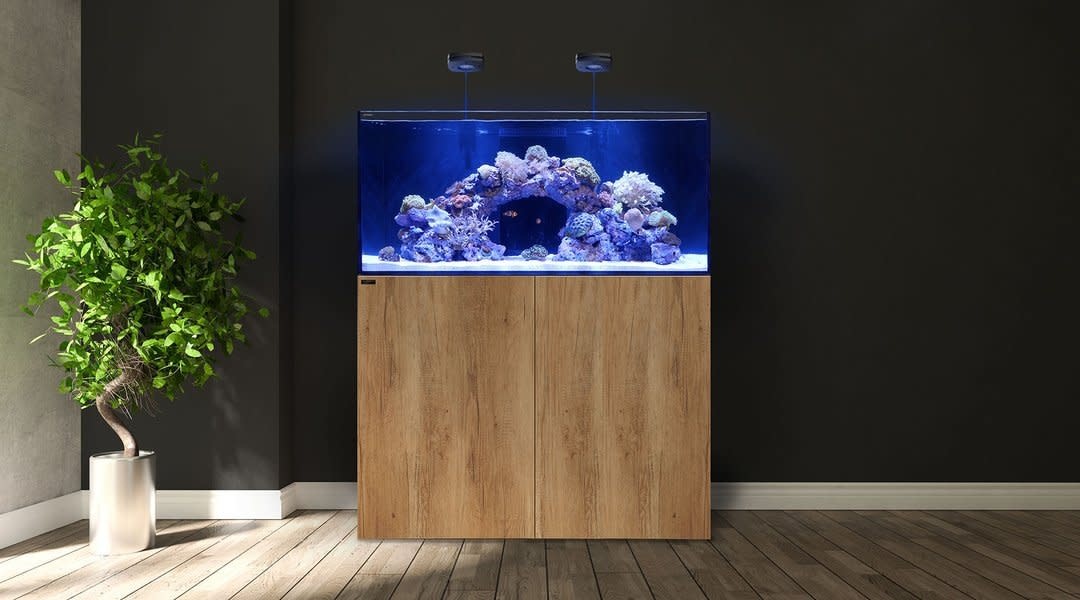

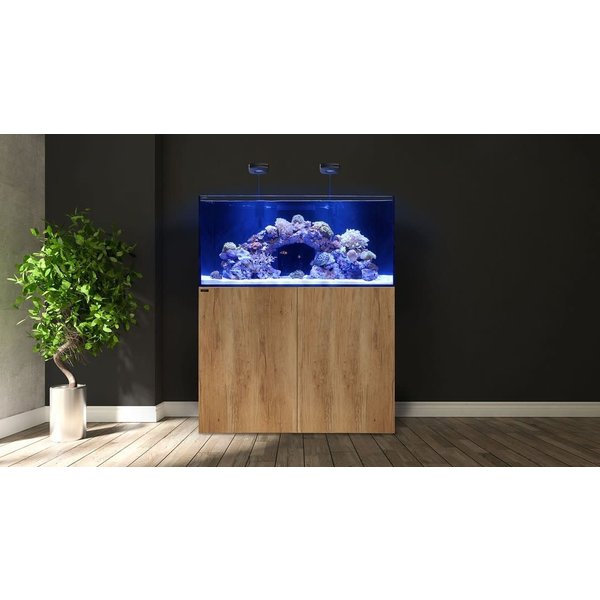

Waterbox Marine X 60.2 Oak

  • Brand: Waterbox More Waterbox
  • MARINE X | 35 - 110 Gallons

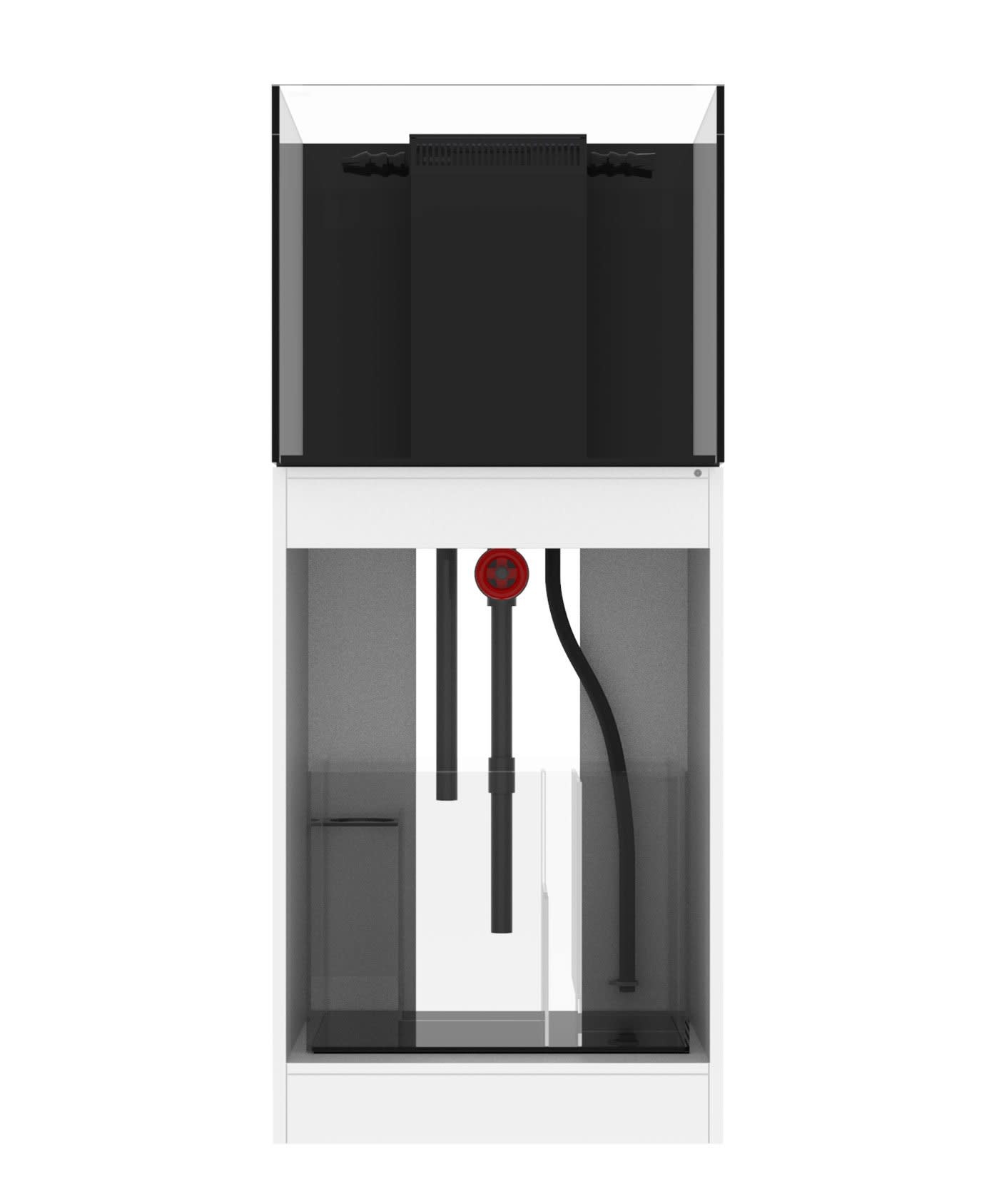

    All Models include aquarium, cabinet, and sump filtration system
    Due to size and weight additional shipping charges may apply
C$1,429.00
Availability: Out of stock
... updating the shopping cart ...
Add to wishlist
  • FREE Local DELIVERY on Orders over 115
  • 17211 107 Ave NW Ph: 780-483-7027 or 1-800-559-6546
  • Shop In Store: Mon-Sat 10-7 Sun 11-5

MARINE X

PRODUCT MODEL MARINE X35.1 MARINE X60.2 MARINE X90.3 MARINE X110.4
Display
Tank
Dimensions 450 x 450 x 450mm 600 x 500 x 500mm 900 x 500 x 550mm 1200 x 500 x 550mm
17.7"×17.7"×17.7" 23.6"×19.7"×19.7" 35.4"×19.7"×21.7" 47.2"×19.7"×21.7"
Glass Thickness 8mm (5/16") 10mm (2/5") 12mm (1/2") 12mm (1/2")
Water Height 435mm/17.1" 485mm/19.1" 535mm/21.1" 535mm/21.1"
Aquarium Volume 83 L/22 gals 136 L/36 gals 224 L/59.3 gals 301 L/79.6 gals
Glass Material Ultra-clear glass
Transmittance 91%
Sump Sump Dimensions 380 x 320 x 380mm 520 x 380 x 380mm 720 x 380 x 380mm 720 x 380 x 380mm
15"×12.6"×15" 20.5"×15"×15" 28.3"×15"×15" 28.3"×15"×15"
Sump Volume 42 L/11.2 gals 70 L/18.5 gals 97 L/25.7 gals 97 L/25.7 gals
Glass Thickness 6mm (1/4") 6mm (1/4") 6mm (1/4") 6mm (1/4")
Skimmer Chamber  308 x 198mm 253 x 318mm 393 x 313mm 393 x 313mm
12.1"×7.8" 10"×12.5" 15.5"×12.3" 15.5"×12.3"
Pump Chamber 176 x 120mm 140 x 220mm 218 x 150mm 218 x 150mm
6.9"×4.7" 5.5"×8.7" 8.6"×5.9" 8.6"×5.9"
RO Reservoiur 165 x 127 x 374mm 140 x 143 x 359mm 195 x 145 x 364mm 195 x 145 x 364mm
6.5"×5"×14.7" 5.5"×5.6"×14.1" 7.7"×5.7"×14.3" 7.7"×5.7"×14.3"
RO Volume 7.9 L/2.1 gals 7.6 L/2.0 gals 10.7 L/2.8 gals 10.7 L/2.8 gals
Plumbing Main Drain DN20 DN20 DN25 DN25
Emergency Overflow DN20 DN20 DN25 DN25
Pump Return DN15 DN20 DN20 DN20
Nozzles DN15 x 1 DN15 x 2 DN15 x 2 DN15 x 2
Filter Socks 70mm/2.75" x 2 105mm/4" x 1 105mm/4" x 2 105mm/4" x 2
Cabinet Cabinet Model PW 1818 PW 2420 PW 3620 PW 4820
Dimensions 450 x 450 x 900mm 600 x 500 x 900mm 900 x 500 x 900mm 1200 x 500 x 900mm
17.7"×17.7"×35.4" 23.7"×19.7"×35.4" 35.4"×19.7"×35.4" 47.2"×19.7"×35.4"
Sump Compartment Inner Dimensions 387 x 410mm 537 x 460mm 810 x 460mm 768 x 460mm
15.2"×16.1" 21.1"×18.1" 31.9"×18.1" 30.2"×18.1"
Material 18mm solid plywood
Color W-White, B-Black, O-Oak
System Height with Cabinet 1350mm/53.1" 1400mm/55.1" 1450mm/57.1" 1450mm/57.1"
Total Volume

126 L/33.2 gals

206 L/54.5 gals 322 L/85.0 gals 399 L/105.3 gals
Aquarium & Sump Weight 87.1lbs (39.5kg) 106.9lbs (48.5kg) 125.7lbs (57kg) 227.1lbs (103kg)

*   All volumes are calculated from net tank dimension less the glass thickness.  They may vary dependent on user configuration and system application.
**  All specifications are subject to changes without prior notice.
