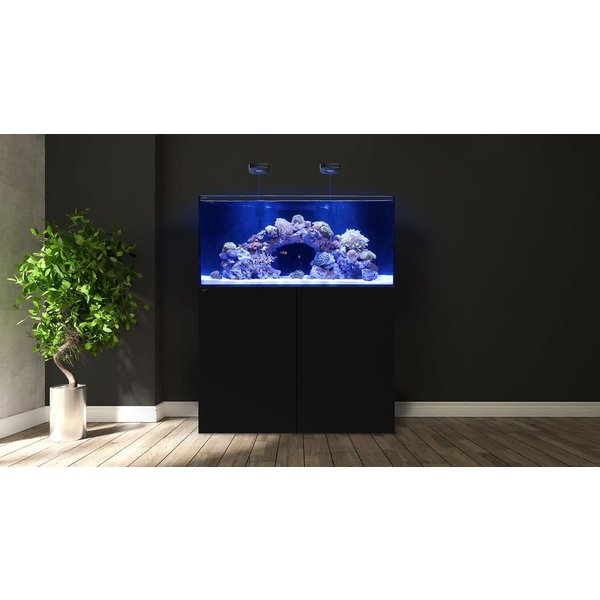

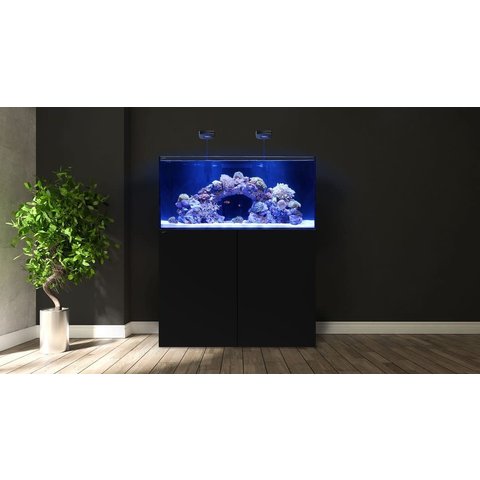

Waterbox Marine X 90.3 Black Special Order
- Brand: Waterbox
-
BUY AND GET A FREE GIFT CARD
Shipping will be quoted
MARINE X | 35 - 110 Gallons
All Models include aquarium, cabinet, and sump filtration system.
MARINE X
| PRODUCT MODEL | MARINE X35.1 | MARINE X60.2 | MARINE X90.3 | MARINE X110.4 | |
|---|---|---|---|---|---|
| Display Tank |
Dimensions | 450 x 450 x 450mm | 600 x 500 x 500mm | 900 x 500 x 550mm | 1200 x 500 x 550mm |
| 17.7"×17.7"×17.7" | 23.6"×19.7"×19.7" | 35.4"×19.7"×21.7" | 47.2"×19.7"×21.7" | ||
| Glass Thickness | 8mm (5/16") | 10mm (2/5") | 12mm (1/2") | 12mm (1/2") | |
| Water Height | 435mm/17.1" | 485mm/19.1" | 535mm/21.1" | 535mm/21.1" | |
| Aquarium Volume | 83 L/22 gals | 136 L/36 gals | 224 L/59.3 gals | 301 L/79.6 gals | |
| Glass Material | Ultra-clear glass | ||||
| Transmittance | 91% | ||||
| Sump | Sump Dimensions | 380 x 320 x 380mm | 520 x 380 x 380mm | 720 x 380 x 380mm | 720 x 380 x 380mm |
| 15"×12.6"×15" | 20.5"×15"×15" | 28.3"×15"×15" | 28.3"×15"×15" | ||
| Sump Volume | 42 L/11.2 gals | 70 L/18.5 gals | 97 L/25.7 gals | 97 L/25.7 gals | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 6mm (1/4") | 6mm (1/4") | |
| Skimmer Chamber | 308 x 198mm | 253 x 318mm | 393 x 313mm | 393 x 313mm | |
| 12.1"×7.8" | 10"×12.5" | 15.5"×12.3" | 15.5"×12.3" | ||
| Pump Chamber | 176 x 120mm | 140 x 220mm | 218 x 150mm | 218 x 150mm | |
| 6.9"×4.7" | 5.5"×8.7" | 8.6"×5.9" | 8.6"×5.9" | ||
| RO Reservoiur | 165 x 127 x 374mm | 140 x 143 x 359mm | 195 x 145 x 364mm | 195 x 145 x 364mm | |
| 6.5"×5"×14.7" | 5.5"×5.6"×14.1" | 7.7"×5.7"×14.3" | 7.7"×5.7"×14.3" | ||
| RO Volume | 7.9 L/2.1 gals | 7.6 L/2.0 gals | 10.7 L/2.8 gals | 10.7 L/2.8 gals | |
| Plumbing | Main Drain | DN20 | DN20 | DN25 | DN25 |
| Emergency Overflow | DN20 | DN20 | DN25 | DN25 | |
| Pump Return | DN15 | DN20 | DN20 | DN20 | |
| Nozzles | DN15 x 1 | DN15 x 2 | DN15 x 2 | DN15 x 2 | |
| Filter Socks | 70mm/2.75" x 2 | 105mm/4" x 1 | 105mm/4" x 2 | 105mm/4" x 2 | |
| Cabinet | Cabinet Model | PW 1818 | PW 2420 | PW 3620 | PW 4820 |
| Dimensions | 450 x 450 x 900mm | 600 x 500 x 900mm | 900 x 500 x 900mm | 1200 x 500 x 900mm | |
| 17.7"×17.7"×35.4" | 23.7"×19.7"×35.4" | 35.4"×19.7"×35.4" | 47.2"×19.7"×35.4" | ||
| Sump Compartment Inner Dimensions | 387 x 410mm | 537 x 460mm | 810 x 460mm | 768 x 460mm | |
| 15.2"×16.1" | 21.1"×18.1" | 31.9"×18.1" | 30.2"×18.1" | ||
| Material | 18mm solid plywood | ||||
| Color | W-White, B-Black, O-Oak | ||||
| System | Height with Cabinet | 1350mm/53.1" | 1400mm/55.1" | 1450mm/57.1" | 1450mm/57.1" |
| Total Volume |
126 L/33.2 gals |
206 L/54.5 gals | 322 L/85.0 gals | 399 L/105.3 gals | |
| Aquarium & Sump Weight | 87.1lbs (39.5kg) | 106.9lbs (48.5kg) | 125.7lbs (57kg) | 227.1lbs (103kg) | |
* All volumes are calculated from net tank dimension less the glass thickness. They may vary dependent on user configuration and system application.
** All specifications are subject to changes without prior notice.
