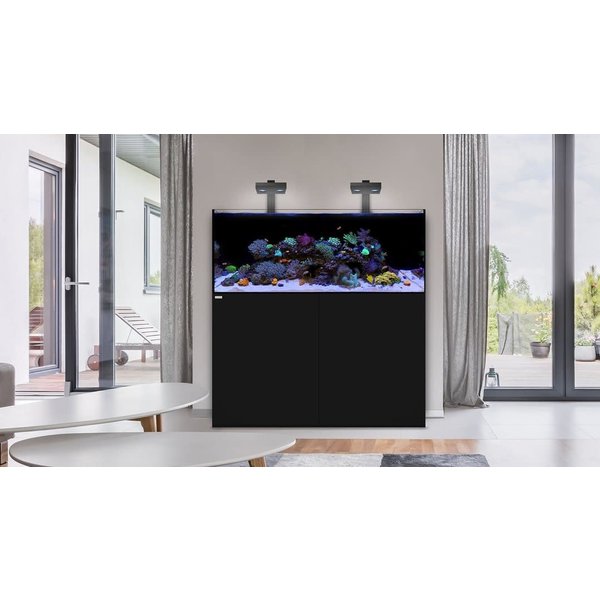

Waterbox Reef 180.5 Black
- Brand: Waterbox
-
REEF | 100 - 220 Gallons
All Models include aquarium, cabinet, and sump filtration system.
Due to size and weight additional shipping charges apply
REEF
| PRODUCT MODEL | REEF 100.3 | REEF 130.4 | REEF 180.5 | REEF 220.6 | |
|---|---|---|---|---|---|
| Display Tank |
Dimensions | 900 x 600 x 550mm | 1200 x 600 x 550mm | 1536 x 643 x 550mm | 1836 x 643 x 600mm |
| 35.4"×23.6"×21.7" | 47.2"×23.6"×21.7" | 60.5"×25.3"×21.7" | 72.3"×25.3"×23.6" | ||
| Glass Thickness | 12mm (1/2") | 12mm (1/2") | 15mm (3/5″) | 19mm (3/4") | |
| Water Height | 535mm/21.1" | 535mm/21.1" | 535mm/21.1" | 585mm/23.0" | |
| Aquarium Volume | 271 L/71.7 gals | 364 L/96.3 gals | 494 L/130.5 gals | 632 L/167 gals | |
| Glass Material | |||||
| Transmittance | |||||
| Sump | Sump Dimensions | 720 x 450 x 380mm | 720 x 450 x 380mm | 820 x 485 x 380mm | 820 x 485 x 380mm |
| 28.3"×17.7"×15" | 28.3"×17.7"×15" | 32.3"×19.1"×15" | 32.3"×19.1"×15" | ||
| Sump Volume | 116 L/30.6 gals | 116 L/30.6 gals | 140 L/37.1 gals | 140 L/37.1 gals | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 8mm (5/16") | 8mm (5/16") | |
| Refugium | - | - | Yes | Yes | |
| Skimmer Chamber with Refugium | - | - | 255 x 397mm | 255 x 397mm | |
| 10"×15.6" | 10"×15.6" | ||||
| Refugium Chamber | - | - | 208 x 397mm | 208 x 397mm | |
| 8.2"×15.6" | 8.2"×15.6" | ||||
| Skimmer Chamber w/o Refugium | 330 x 438mm | 330 x 438mm | 397 x 469mm | 397 x 469mm | |
| 13"×17.2" | 13"×17.2" | 15.6"×18.5" | 15.6"×18.5" | ||
| RO Reservoir Dimensions | 192 x 246 x 359mm | 192 x 246 x 359mm | ATO Tank | ATO Tank | |
| 7.6"×9.7"×14.1" | 7.6"×9.7"×14.1" | ||||
| RO Volume | 17 L/4.5 gals | 17 L/4.5 gals | |||
| Pump Chamber | 240 x 200mm | 240 x 200mm | 469 x 158mm | 469 x 158mm | |
| 9.4"×7.9" | 9.4"×7.9" | 18.5"×6.2" | 18.5"×6.2" | ||
| ATO Tank | ATO Dimensions | - | - | 350 x 361 x 350mm | 350 x 361 x 350mm |
| 13.8"×14.2"×13.8" | 13.8"×14.2"×13.8" | ||||
| ATO Volume | 41 L/10.9 gals | 41 L/10.9 gals | |||
| Glass Thickness | 5mm (3/16") | 5mm (3/16") | |||
| Plumbing | Main Drain | DN25 | DN25 | DN32 | DN32 |
| Emergency Overflow | DN25 | DN25 | DN32 | DN32 | |
| Pump Return | DN20 | DN20 | DN25 | DN25 | |
| Nozzles | DN15 x 2 | DN15 x 2 | DN15 x 2 | DN15 x 2 | |
| Filter Socks | 105mm/4" x 2 | 105mm/4" x 2 | 180mm/7" x 2 | 180mm/7" x 2 | |
| Cabinet | Cabinet Model | UV 3624 | UV 4824 | UV 6025 | UV 7225 |
| Cabinet Dimensions | 900 x 600 x 900mm | 1200 x 600 x 900mm | 1536 x 643 x 900mm | 1836 x 643 x 900mm | |
| 35.4"×23.7"×35.4" | 47.2"×23.7"×35.4" | 60.5"×25.3"×35.4" | 72.3"×25.3"×35.4" | ||
| Sump Compartment Inner Dimensions | 810 x 560mm | 768 x 560mm | 915 x 605mm | 815 x 605mm | |
| 31.9"×22" | 30.2"×22" | 36"×23.8" | 32.1"×23.8" | ||
| Material | 18mm solid plywood | ||||
| Paint (side & front) | PU Painting | ||||
| Color | W-White, B-Black | ||||
| System | Height with Cabinet | 1450mm/57" | 1450mm/57" | 1450mm/57.1" | 1500mm/59.1" |
| Total Volume | 387 L/102.4 gals | 480 L/126.9 gals | 675 L/178 gals | 813 L/215 gals | |
* All volumes are calculated from net tank dimension less the glass thickness. They may vary dependent on user configuration and system application.
** All specifications are subject to changes without prior notice.
